3W Ultraviolet UV LED Diode

Product Categories

GUANGZHOU TIANXIN PHOTOELECTRIC CO., LTD

Contact Now

Name: 3W Ultraviolet UV LED Diode
Brand: TYANSHINE
Price: 1 USD

Brand Name : TYANSHINE

Model Number : TX-3535P3FC120-OGVEZA72-01

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 1000pcs

Price : Negotiation

Payment Terms : ExW, FOB, CIF

Supply Ability : 100000PCS/month

Delivery Time : 5-10 days

Packaging Details : In Reel

Color : UV / UltravioleT

Power : 1W - 3W

If : 700mA

Vf : 3.0-3.6V

Wavelength : 380-400nm

Lumen : 1-1.5lm

Beam Angle : 120 degree

Package : SMD

Contact Now

3W UV LEDs 700mA Ultraviolet LEDs 380nm-400nm XP-E SMD LED Diodes

Features:

Specifications:

Code	Color	Vf (V)	If (mA)	λd(nm) CCT(K)	φv(lm)	LES(mm)
TX-3535R3FC120-OGVEND34-03	Red	1.9-2.5	700	618-628nm	50-65lm	Φ2.75
TX-3535G3FC120-OGVEND34-03	Green	2.8-3.6	700	520-530nm	80-110lm
TX-3535B3FC120-OGVEND34-03	Blue	2.8-3.6	700	456-468nm	19-31lm
TX-3535W3FC120-OGVEND34-A03	White	2.8-3.6	700	≥7000 K	94-139lm
TX-3535Y3FC120-OGVCND34-01	Yellow	2.0-3.0	700	585-595nm	60-75lm
TX-3535P3FC120-OGVEZA72-01	Ultraviolet UV	3.0-3.6	700	380-400nm	1-1.5lm
TX-3535IR3FC120-OGVCND34-03	Infrared IR	1.7-1.9V	350	850-858nm	260-320mW

Package Dimensions:

3W Ultraviolet UV LED Diode

Applications:

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

UV Curing, 3D pringing

3W Ultraviolet UV LED Diode

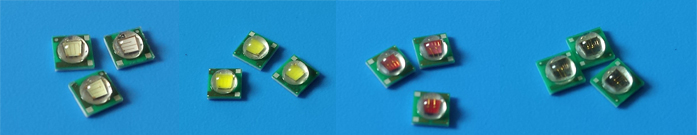

3W Ultraviolet UV LED Diode Images
