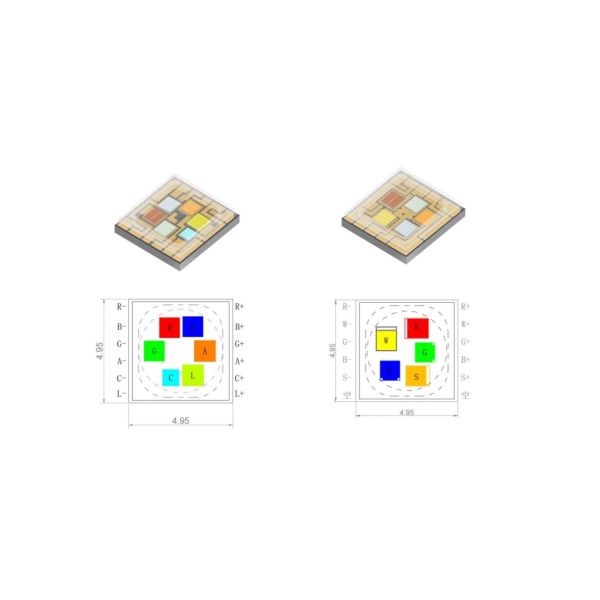

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Product Categories
GUANGZHOU TIANXIN PHOTOELECTRIC CO., LTD
Contact Now

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

  • 1
  • 2
  • 3

Place of Origin : CN

Brand Name : TYANSHINE

Certification : RoHS. REACH

Model Number : TX-5050 Series

MOQ : 1000pcs

Price : Negotiation

Packaging Details : In Reel

Delivery Time : 5-10 days

Payment Terms : ExW, FOB, CIF

Supply Ability : 100000PCS/month

Power : 10W / 20W

Colour : RGBLAC/RGBLAP/RGBWW

Size : SMD5050

Substrate : Ceramic

Lens type : Flat

Contact Now

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Features:

  1. Copmact Ceramic SMD5050 LEDs,
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. Various options colour mixture, RGBLAC, RGBLAP, RGBWW
  6. Low expansion coefficient, high air tightness

Specifications:

20Watt SMD5050 LED 6IN1 Multi-color

Multi-color Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=700mA

 CRI

RGBLYP

20Watt

 R 1000 2.0-2.8 620-625nm 70-100 /
G 1200 2.8-3.6 520-530nm 150-230 /
B 1200 2.8-3.6 450-460nm 25-40 /
L 1200 2.9-3.5 5000-5250K 270-320 /
Y 1000 2.3-3.0 1500-1600K 110-140 /
UV 500 3.0-3.8 399-404nm 490-600mW /

Multi-color Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=700mA

 CRI

RGBLAC

20Watt

 R 1000 2.0-2.8 620-625nm 70-100 /
G 1200 2.8-3.6 520-530nm 150-230 /
B 1200 2.8-3.6 450-460nm 25-40 /
L 1200 2.9-3.5 4030-4280K 190-240 /
A 1200 2.3-3.0 1850-1950K 130-180 /
C 700 2.9-3.5 490-495nm 60-70 /

Multi-color Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=700mA

 CRI

RGBLWW

20Watt

 R 1000 2.0-2.8 620-625nm 70-100 /
G 1200 2.8-3.6 520-530nm 150-230 /
B 1200 2.8-3.6 450-460nm 25-40 /
L 1200 2.9-3.5 3900-4100K 200-250 /
W 1200 2.9-3.6 5600-6000K 140-170 90
WW 1000 2.8-3.6 2850-2960K 120-150 90

20Watt SMD5050 LED 5IN1 Multi-color

Multi-color Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBLW

20Watt

 R 2000 2.0-2.8 630-638nm 80-100 /
G 1800 2.8-3.6 520-530nm 190-250 /
B 1800 2.8-3.6 450-460nm 30-45 /
465-475nm 65-85
L 2200 2.8-3.6 4250-4500K 285-360 /
WW 1800 2.8-3.6 2850-3200K 225-285 80

Multi-color Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=700mA

 CRI

RGBWW

20Watt

 R 1000 2.0-2.8 620-625nm 70-100 /
G 1200 2.8-3.6 520-530nm 150-230 /
B 1200 2.8-3.6 450-460nm 25-40 /
W 1800 2.9-3.6 5800-6400K 180-230 95
WW 1800 2.8-3.6 2670-2840K 130-170 95

Applications:

Stage Lighting, Image Based Lighting Panel

Automotive Illumination
Architectural lighting

Landscape lighting
