Stage Lighting 500W LED Module RGBLA Multicolor Profile LED Engine

Name: Stage Lighting 500W LED Module RGBLA Multicolor Profile LED Engine
Brand: TYANSHINE
Price: 1 USD

Brand Name : TYANSHINE

Model Number : TX-4566RGBLA500FC120-NUVENG-01

Certification : ISO9001:2008 ROHS

Place of Origin : CN

MOQ : 10pcs

Price : negotiation

Payment Terms : ExW

Supply Ability : 10,000pcs/week

Delivery Time : 5-10 days

Packaging Details : In Tray

Power : 500W

Forward Voltage : 45V-50V

Forward Current : 1.3A

Color : RGBLA

Lumen : 3700lm - 4500lm

LES : Φ16.1mm

Contact Now

Stage Lighting 500W LED Module RGBLA Multicolor Profile LED Engine

Features:

1, Small LES, 5W/mm²

2, Eutectic flip-chip bonding technique

3, Higher Forward Voltage, Lower Forward Current,

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

5, Excellent effect of color-mixing for 3 Colors or 4 Colors LEDs light source

6, Copper MCPCB, high thermal conductivity

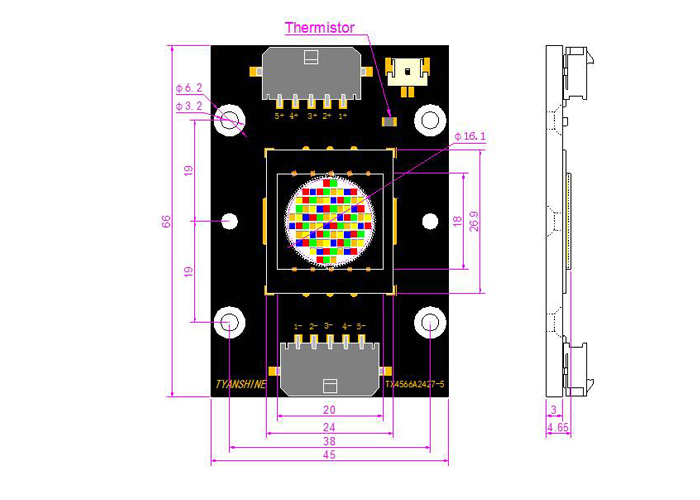

Specifications:

Item Code	Color	IF (A)	VF (V)	WaveLength(nm) CCT(K)	Brightness (Lm)	Resistance (K/W)	LES(mm)
4566RGBLA500	Red	1.3	45-50	620-625	2100-2400	0.09	Φ16.1
	Green	1.3	55-60	522-526	3800-4200
	Blue	1.3	45-50	452-458	750-900
	Lime	1.3	45-50	4000-4500	4000-4500
	PC-Amber	1.3	45-50	1800-2000	2300-2600

Stage Lighting 500W LED Module RGBLA Multicolor Profile LED Engine

Applications:

Entertainment lighting

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection
