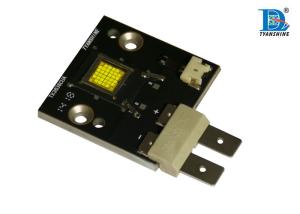

White 150W LED Light Engine

Brand Name : TYANSHINE

Model Number : TX-3636W150FC120-NUVENG-A01

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10,000pcs/week

Delivery Time : 5-10 days

Packaging Details : In Tray

Power : 150Watt

Vf : 12-16V

IF : 11A

CCT : 6500K-8500K

Lumen : 8500-9500lm

Applications : Architectural lighting

Contact Now

11A White LED Light Engine , 150W Spot Washing Lighting LED Engine

Features of the White LED:

1, Small LES, 5W/mm² ;

2, Eutectic packages technique, fast heat-conductivity;

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;

6, Quick on/off; Anti-poisonous or toxic, comply with RoHS

Specifications:

Code

Color

(V)

(A)

CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01

White

12-16

6.5

6500-8500

3600-4000

4.3 x 4.3

TX-3636W150FC120
-NUVENG-A01

White

12-16

6500-8500

6000-6500

150

6.5 x 6.5

Applications:

Entertainment lighting, Projection lights, Moving-Heads, SPOT, GOBO

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
