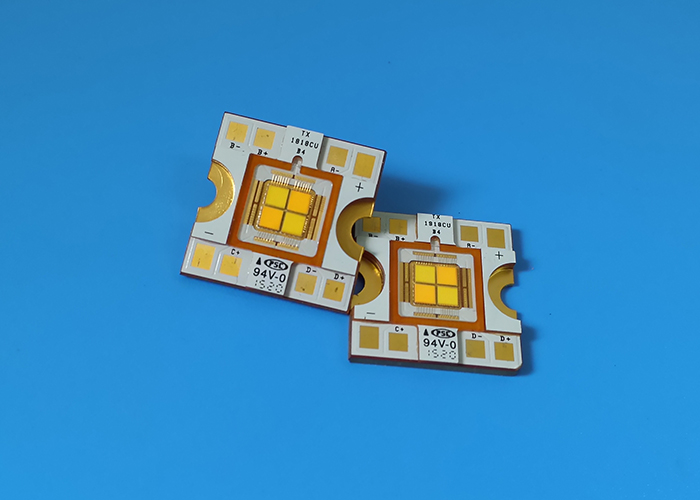

Bi - Color Multichip Light Emitting Diode 60W Color Tunning 3000K - 6000K

Name: Bi Color Multichip Light Emitting Diode 60W Color Tunning 3000K 6000K
Brand: TYANSHINE
Price: 1 USD

China Bi - Color Multichip Light Emitting Diode 60W Color Tunning 3000K - 6000K wholesale

Brand Name : TYANSHINE

Model Number : TX-1818WS600FC120-CUHCNG-01H90

Certification : ISO9001:2008 ROHS SGS

Place of Origin : CN

MOQ : 10

Payment Terms : Western Union, T/T, L/C

Packaging Details : In tray

Color-mixing : Bi-color White + WarmWhite

Forward Voltage : 3V-4V

Power : 60W

LES : Φ11

Dimension : 18 * 18mm

CRI : 90Ra

Contact Now

Bi - Color Multichip Light Emitting Diode 60W Color Tunning 3000K - 6000K

Features for 60W RGBW LEDs:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Specifications:

Code

Color

(V)

(mA)

Rθ_J-C

Φv

(lm)

Power

LES

(mm)

TX-1818WS600FC120-CUHCNG-01H90

3.5-4.2V

3000

0.75 K/W

2300-2700

9 x 9

Characteristics at If=1800mA (Ta=85°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	W	650lm	750lm	-
		S	500lm	600lm	-
		W	650lm	750lm	-
		S	500lm	600lm	-
Colour Temperature	CCT	W	5300K	-	5800K
		S	3000K	-	3250K
Forward Voltage	V_f		3.5V	-	4.2V

Bi - Color Multichip Light Emitting Diode 60W Color Tunning 3000K - 6000K

Applications:

Film / Studio lighitng

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
