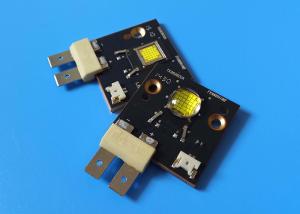

9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines

Name: 9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines
Brand: TYANSHINE
Price: 1 USD

China 9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines wholesale

Brand Name : TYANSHINE

Model Number : TX-3636W150FC120-NUVENG-A01

Certification : RoHS SGS

Place of Origin : CN

MOQ : 10pcs

Payment Terms : Western Union, T/T, L/C,PayPal

Packaging Details : In plastic Tray

Beam Angle : 100 degree

CCT : 7000K

Power : 150W

Vf : 12-16V

If : 11A

Package size : 36x36mm

Contact Now

9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines

Features of the White LED:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.

9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines

Specifications:

Code

Color

(V)

(A)

CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01

White

12-16

6.5

6500-8500

3600-4000

4.3 x 4.3

TX-3636W150FC120
-NUVENG-A01

White

12-16

6500-8500

6000-6500

150

6.5 x 6.5

Ta=85℃

Parameter	Symbol	Value (Max.)	Unit
LED Junction Temperature	T_j	150	℃
Power Dissipation	P_D	150	W
Continuous Forward Current	I_F	11	A
ElectrostaticDischarge Threshoid	ESD	2000	V

I_f=11 A (Ta=85°C)

Parameter	Symbol	Values			Unit
Parameter	Symbol	Min.	Typical	Max.	Unit
Luminous Flux	φV	8500	9500	-	lm
Viewing Angle at 50﹪IV	2θ_1/2	-	115	-	Degree
Forward Voltage	V_f	12	14	16	V
Colour Temperature	CCT	6500	7500	8500	K
Thermal Resistance Junction to Case	Rθ_J-C	-	0.2	-	K/W

Typical Electrical / Optical Characteristics Curves

9500lm Multichip White LED 150Watt CCT 7000K LED Light Engines

Applications:

Entertainment lighting, Projection lights, Moving-Heads
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber optic lighting

Package: In Plastic Tray (4 pcs)
