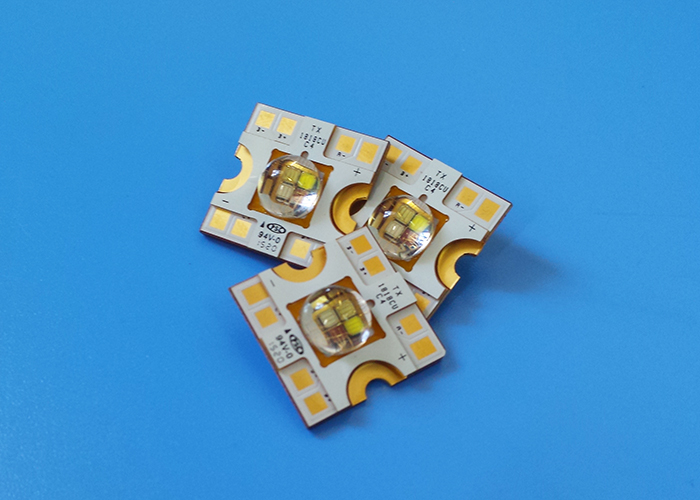

4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters

Name: 4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters
Brand: TYANSHINE
Price: 1 USD

China 4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters wholesale

Brand Name : TYANSHINE

Model Number : TX-1818RGBW30FC65-CUHCNG-01

Certification : ISO9001:2008 ROHS SGS

Place of Origin : CN

MOQ : 10

Payment Terms : Western Union, T/T, L/C

Packaging Details : In tray

Color : RGBW

Forward Current : 1800mA

Forward Voltage : 3V

Power : 30Watt

LES : Φ11

Dimension : 18 * 18mm

Contact Now

4 in 1 RGBW Multi Color LEDs 30Watt Stage Lighting Small LES LED Emitters

Features for 60W RGBW LEDs:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Specifications:

Code

Color

(V)

(mA)

Rθ_J-C

Φv

(lm)

Power

LES

(mm)

TX-1818RGBW60FC120-CUHCNG-01

RGBW

2-4V

1800

0.75 K/W

750-900

9 x 9

Characteristics at If=1800mA (Ta=85°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	R	190lm	220lm	-
		G	210lm	230lm	-
		B	55lm	65lm	-
		W	330lm	360lm	-
Dominant Wavelength	λd	R	615nm	620nm	625nm
		G	515nm	520nm	525nm
		B	452nm	456nm	460nm
Colour Temperature	CCT	W	6500K	7500K	8500K
Forward Voltage	V_f	R	2.4V	-	3.2V
		G	3.2V	-	4.0V
		B	3.2V	-	4.0V
		W	3.2V	-	4.0V

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
