Medical illumination 90 Watt LED Light Engine 3600 - 4000lm 40lm/W

Name: Medical illumination 90 Watt LED Light Engine 3600 4000lm 40lmW
Brand: TYANSHINE
Price: 1 USD

China Medical illumination 90 Watt LED Light Engine 3600 - 4000lm 40lm/W wholesale

Place of Origin : CN

Brand Name : TYANSHINE

Certification : ISO9001:2008 SGS RoHS

Model Number : TX-3636W150FC120-NUVENG-A01

MOQ : 1pcs

Price : Negotiation

Packaging Details : In Tray

Delivery Time : 5-10 days

Payment Terms : T/T, T/T, Western Union

Supply Ability : 10,000pcs/week

Chip : CREE Flip chip

Package : Eutectic Bonding

LES : 9x9mm

Wattage : 90W / 150W

Contact Now

Medical illumination 90 Watt LED Light Engine 3600 - 4000lm 40lm/W

Medical illumination LED Light Engine with Small LES and High Lumens/mm²

Features:

1, Small LES, 5W/mm² ;

2, Eutectic packages technique, fast heat-conductivity;

3, Special Parallel and Serial connection,1/4 current for the same power compared with the similar product in the market ;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;

6, Quick on/off; Anti-poisonous or toxic, comply with RoHS

Specifications:

Code

Color

(V)

(A)

CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01

White

12-16

6.5

6500-8500

3600-4000

4.3 x 4.3

TX-3636W150FC120
-NUVENG-A01

White

12-16

6500-8500

6000-6500

150

6.5 x 6.5

Applications:

Entertainment Wash Lighting

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber Coupled Illumination

Medical illumination 90 Watt LED Light Engine 3600 - 4000lm 40lm/W

Product Tags:

led light module

led lighting engine

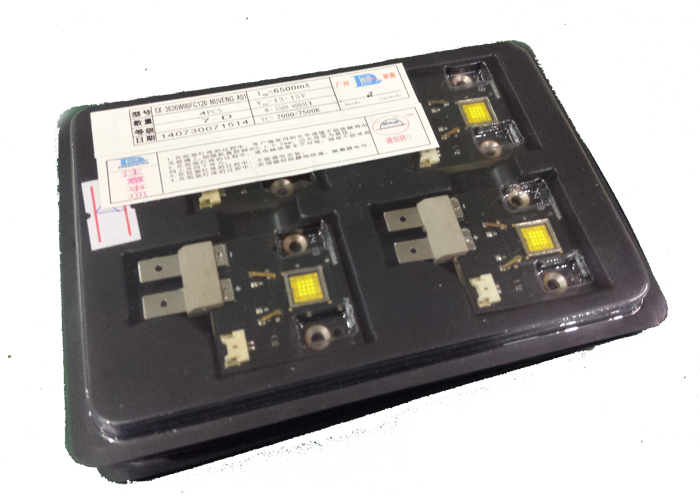

Medical illumination 90 Watt LED Light Engine 3600 - 4000lm 40lm/W Images
