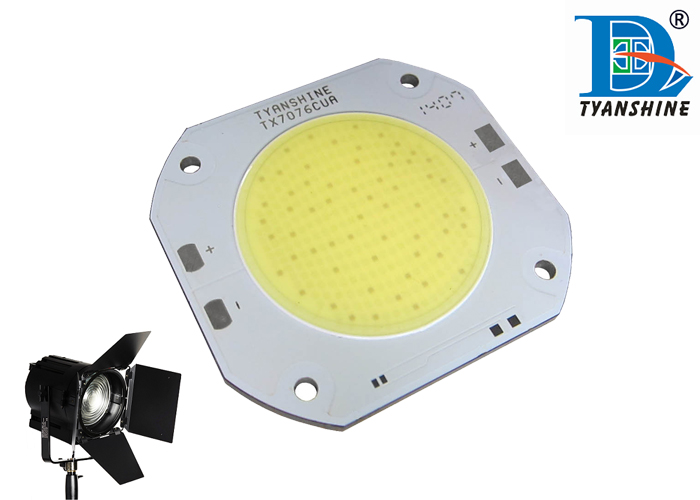

3200K Fresnel 600W Multichip Led Array COB 95Ra Tungsten High Efficiency

Name: 3200K Fresnel 600W Multichip Led Array COB 95Ra Tungsten High Efficiency
Brand: TYANSHINE
Price: 1 USD

China 3200K Fresnel 600W Multichip Led Array COB 95Ra Tungsten High Efficiency wholesale

Brand Name : TYANSHINE

Model Number : TX-7076W6000D180CUY-C02AH95

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 10pcs

Price : negotiation

Payment Terms : ExW, FOB, CIF

Supply Ability : 10000PCS/month

Delivery Time : 5-10 days

Packaging Details : In Tray

Power : 600Watt

Voltage : 44V-48V

Color Temperature : 3200°K

LES : Φ52mm

Efficiency : 75lm/W

TLCI : 90

CRI : 95Ra

R9 : 90

R12 : 85

Contact Now

3200K Fresnel 600W Multichip Led Array COB 95Ra Tungsten High Efficiency

Features:

High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
High power/high efficiency package
Full spectrum White Color-mixing by RGBY
Integraged packages, low luminous decay and long lifespan
3mm Copper MCPCB, fast heat-conductivity
Easy installation, save cost

Specifications:

Code

Color

(V)

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-7076W600D180CUY

-C02AH95

Tungsten

42-48

3200°K

40000-44000

600

Φ52

≥95

TX-7076W600D180CUY

-B02AH95

Daylight

42-48

5600°K

46000-50000

600

≥95

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Values			Units
Parameter	Symbol	Min.	Typical	Max.	Units
Forward Voltage	V_F	44	-	48	V
Continuous Forward Current	I_F		12		A
Power Dissipation	P_D		400		W
Luminous Flux	φV	46000	50000		lm
Correlated Colour Temperature	CCT	5000	6000	7000	K
Color Rendering Index	Ra	90	95
LED Junction Temperature	T_j		150		℃
ElectrostaticDischarge Threshoid	ESD		2000		V

Applications:

Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting

3200K Fresnel 600W Multichip Led Array COB 95Ra Tungsten High Efficiency
