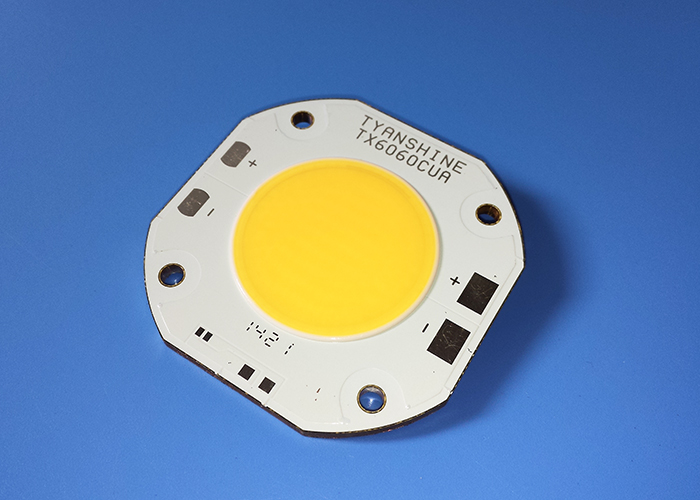

3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module

Name: 3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module
Brand: TYANSHINE
Price: 1 USD

China 3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module wholesale

Brand Name : TYANSHINE

Model Number : TX-6060W250D180CUY-C01H95

Certification : ISO9001:2008 SGS RoHS

Place of Origin : CN

MOQ : 10pcs

Price : negotiation

Payment Terms : ExW, FOB, CIF

Supply Ability : 10000PCS/month

Delivery Time : 5-10 days

Packaging Details : In Tray

Power : 250W

Forward Voltage : 24-28V

Forward Current : 7.5A

Color Temperature : 3000K

CRI : 95Ra

LES : Φ37mm

Efficiency : 80lm/W

COB Size : 60x60mm

Contact Now

3000K Fresnel LED COB Array CRI 95Ra COB 250W LED Module

Features:

High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
High power/high efficiency package
Full spectrum White Color-mixing by RGBY
Integraged packages, low luminous decay and long lifespan
3mm Copper MCPCB, fast heat-conductivity
Easy installation, save cost

Specifications:

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Values			Units
Parameter	Symbol	Min.	Typical	Max.	Units
Forward Voltage	V_F	24	26	28	V
Continuous Forward Current	I_F		7.5		A
Power Dissipation	P_D		250		W
Luminous Flux	φV	12000	16000		lm
Correlated Colour Temperature	CCT	2700	3100	3500	K
Color Rendering Index	Ra	90	95
LED Junction Temperature	T_j		150		℃
ElectrostaticDischarge Threshoid	ESD		2000		V

Code

Color

(V)

(A)

CCT

(K)

Φv

(lm)

Power

LES

(mm)

CRI

(Ra)

TX-6060W250D180CUY-C01H95

Warm White

24-28

7.5

3000-3300

10000-12000

250

Φ37

≥95

TX-6060W250D180CUY-B01H90

White

24-28

7.5

5000-5600

12000-16000

250

≥90

Applications:

Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting
